Mechanical protection
The metal mesh that sits against the component. It gives the blanket its shape and stands up to abrasion and machine vibration.
PremiumAISI 304 stainless mesh · up to 0.28 mm StandardAISI 304 stainless mesh · up to 0.28 mm
The solution
The MTB thermal blanket
Removable, waterproof and reusable thermal insulation, custom-made for each hot component.
How it works
The blanket is built in layers: a hot face rated for the component temperature, an insulating core and a waterproof cold face. The assembly is sewn and fastened onto the equipment with springs and velcro.
The result is a barrier that keeps the outer surface around 55 °C even with the component above 375 °C, and that can be removed and refitted in minutes for inspection.

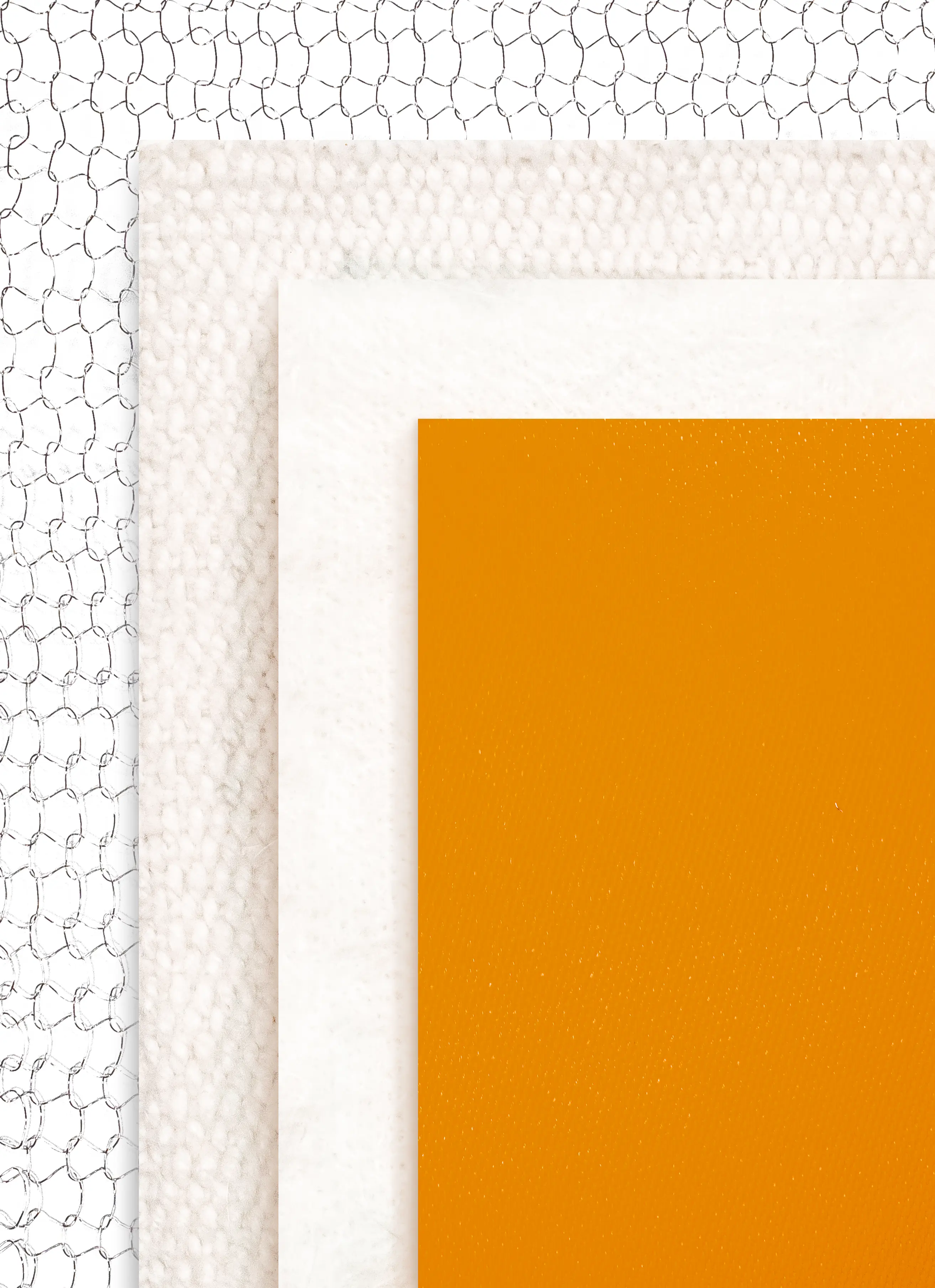

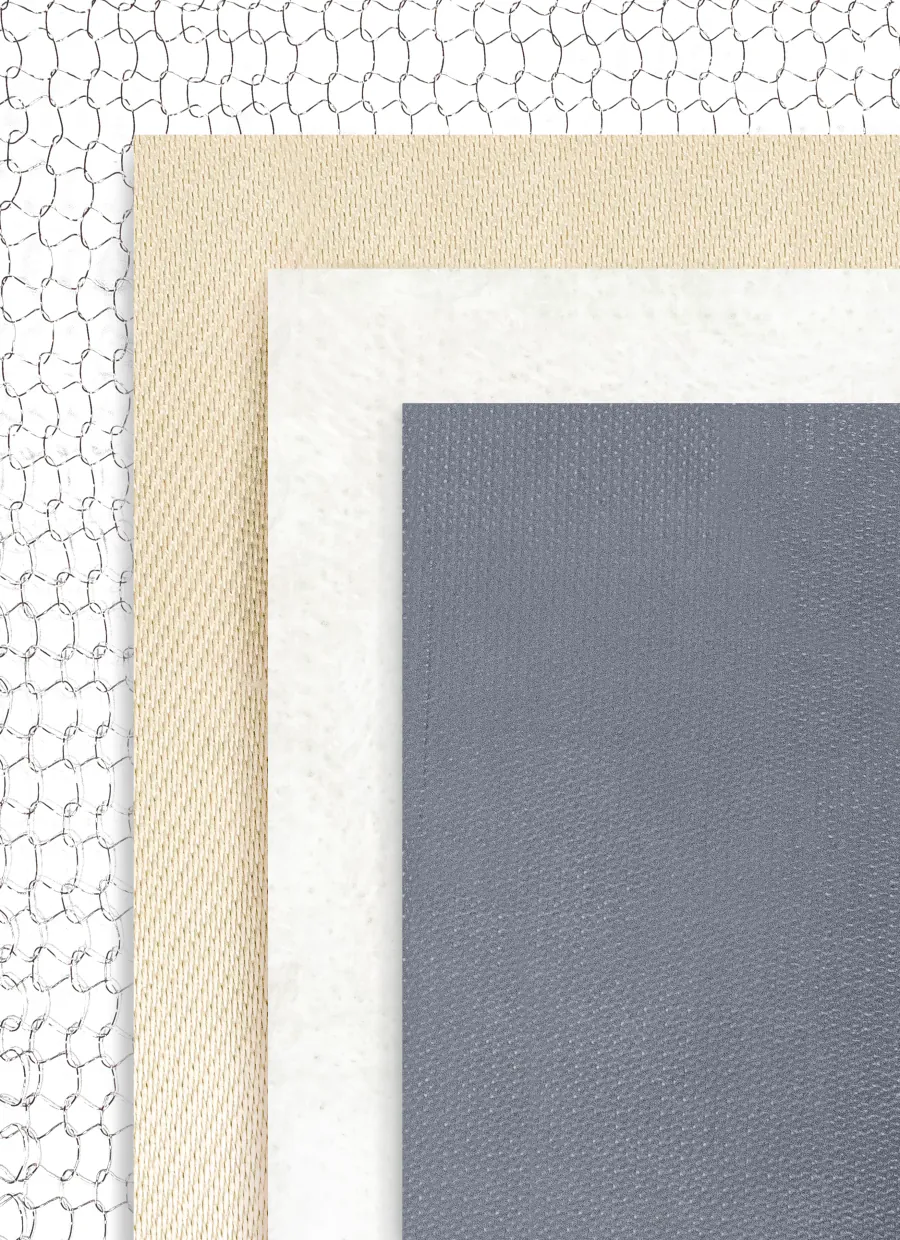

The four layers
From the mesh against the hot component to the outer face the operator touches. Pick a number to see each layer.
Inner fabric
The textile barrier that takes the direct heat from the exhaust, turbo or pipework.
PremiumSilica fabric · up to 1,000 °C StandardCeramic fibre fabric · up to 1,200 °C
Insulation
The core that holds the heat back. The thickness of this layer is what sets the outer face temperature.
PremiumNeedlemat blanket · up to 650 °C · up to 100 mm StandardCeramic fibre blanket · up to 1,260 °C · up to 100 mm
Cold face
The outer skin, impermeable to oil, fuel, water and hydraulic fluid. This is the face the operator touches.
PremiumSpecial siliconised fibre · up to 260 °C StandardSiliconised glass fibre · up to 260 °C
Data sheets
Full specifications for each line, PDF in Portuguese.
Specifications
- Operating temperature
Up to 1,200 °C on the Standard line and 1,000 °C on the Premium line, depending on the hot-face fabric. - Cold face
Waterproof to oil, fuel, water and hydraulic fluids. - Fastening
Stainless-steel springs, straps and high-temperature velcro. Fitted and removed without tools. - Composition
Asbestos-free. Batch-traceable materials. - Modelling
Specific to component and equipment model. Broad portfolio of machines already produced. - Reuse
Removable and reusable throughout its service life. - Warranty
Premium: 24-month factory warranty. Standard: 12 months. Technical follow-up after installation on both lines.
Applications
Exhaust and manifoldTurboMufflerAftertreatment (SCR/DPF)Valves and flangesHeat exchangersBoilers and furnacesSteam pipingGenerators and compressors
The solution
Production process
Need to insulate heat safely?
Talk to MTB.
Send us your requirement and receive a proposal with the exact solution for your machinery.
